$Id: webclient.html,v 1.10 1999/11/20 00:15:38 edburns%acm.org Exp $
Edward J. Burns <ed.burns@sun.com>
Sun Microsystems Inc, Palo Alto, CA 94303, USA
This paper provides an account of the author's experiences in implementing Webclient: an open source, generic web browser API in Java. Webclient uses technology from an existing web browser, initially Mozilla, to implement the API. The author discusses the motivation, origins, goals, and possible future directions for Webclient, the pro's and cons of working with mozilla, the processes used in developing Webclient, and gives a technical overview of the existing prototype implementation.
Browsers, Java, components
The term "browser wars" was coined to describe the battle for controlling the world's web browsing experience. The primary combatants in the browser wars are Netscape and Microsoft. In this paper, the author will relate his experiences in developing a product, called Webclient, that leverages the output of browser wars, rather than participating in them. The mission statement of Webclient is: "to provide the premier browser-neutral Java API that enables generic web browsing capability." [1 ] The motivation for Webclient is to give Java developers a world class web browsing component which they can embed in their applications.
Webclient is a generic web browser API. The "browser-neutral" in the mission statement means that the actual implementation is provided by an existing, possibly native code, browser, such as Mozilla or Microsoft Internet Explorer. The ability to wrap an existing browser provides several benefits:
Webclient's design incorporates scalability, with respect to the underlying implementation. The underlying browser doesn't have to implement the full Webclient specification. For example, assume that the underlying browser implementation doesn't support printing, yet printing is in the Webclient API. The Webclient design calls for the Webclient software to "decay gracefully" in this case. That is, it is not an error to invoke methods that don't have an implementation.
Webclient is certainly not the first web browsing component available to Java application developers, but it is the first to rely entirely on an underlying browser for its implementation. While it is possible to use Microsoft's WebBrowser ActiveX control from Java, this requires the use of extra tools to bridge the two environments. Webclient tightly integrates with the underlying browser, without requiring any extra tools to bridge the gap. There are some significant drawbacks this approach. If the underlying browser is not written in Java, as in the case of Mozilla and Internet Explorer, there are issues the end user must confront, as well as issues that the Webclient developers must confront. The end user issues include increased memory and disk footprint. At runtime the process must include a Java virtual machine as well as the footprint of the native browser. The user must also install more components: a Java VM, the Webclient software, and the native browser. Of course installer programs can facilitate this process. Issues for the Webclient developers when wrapping a native browser include: differing APIs between different browsers, dealing with memory management, and increased complexity of build environment. These concerns disappear when the underlying browser is already in Java. The only remaining concern in this case is the differing APIs, which are hidden beneath the consistent Webclient API in any case.
The following browsers were examined during the development of Webclient.
All of the above browsers are pure Java, and each has its pros and cons. The ICE Browser is small, modular, and fast, but currently can only correctly render well formed HTML. The CLUE browser is too early in its development to be considered comparable to Netscape or IE. The HotJava bean is a well known, proven product, written by some of the people working on Webclient, but its development has been terminated by Sun. A prototype implementation of Webclient with a HotJava core has been developed, however. The JEditorPane ships with version 1.2 of Sun's Java Development Kit, but also falls short of Netscape and IE in the quality of its browsing experience. Thus, the author believes the best way to deliver a high quality browsing experience is to rely on products that have already proven their success in the marketplace.
It is said that only a fool builds on sand, but with the author's funding coming from a source that advocated using Mozilla (the Sun-Netscape alliance [11]), there was little choice but to try to use it in its early and evolving state. The developers of Webclient have continually felt the pain of this decision. This section will detail some of the problems found in depending on an evolving open source project, and how they were dealt with.
First there is the very matter of "bootstrapping" the whole system. This involves initializing the component system, setting up system paths, and loading dependent libraries. The specifics of how this is done change frequently, and Webclient must be continually updated to the latest method of bootstrapping. There are several other concerns related to the changing Mozilla implementation, and a strategy for dealing with these changes is detailed below.
To minimize the impact of basing Webclient on an evolving open-source project, a strategy was adopted: Webclient would only depend on "milestone releases". The Mozilla web browser project was being developed in an iterative fashion, and is in the habit of releasing semi-regular development milestones. A milestone is a snapshot of the Mozilla source tree at a time when the software was known to be stable in some way. Since the beginning of 1999, Mozilla has released a new milestone every 33 days on average. The idea was that Webclient would depend only on milestone releases. When a new milestone was released, Webclient would take a temporary hit and "upgrade" the new release. This approach would shield Webclient from changes in the Mozilla source code and any destabilizing affects these changes may have for Webclient.
This approach works fine, as long as there are no "show stopper" bug fixes in Mozilla on which Webclient depends, and the milestones come out regularly and frequently. Unfortunately, there were times when neither condition was met.
For example, the "bin directory" bug. While Mozilla had included in its charter the embedding of the browser in another application, the code didn't actually reflect that behavior. There were several cases in the code where Mozilla would make an assumption about the location of dynamic libraries (executable code that is loaded into memory by a program while it is running) based on the location of the main executable program. These assumptions are only valid when the main executable program is the Mozilla browser. The assumptions break down when the main executable program is the Java runtime, or any program other than the Mozilla main executable program. This is the "bin directory" bug. An ugly workaround for this bug had been developed in Webclient, but it hindered Webclient's deployability. After the initial release of Webclient source code, interest in the project had been steadily increasing, and requiring everyone to implement an inconvenient workaround was a big enough problem that it had to be dealt with.
The Webclient team implemented a fix in Mozilla that allows the bin directory to be specified at the beginning of the initialization sequence. Unfortunately, due to schedule slippage at Netscape, the code that implemented this fix wouldn't be in a milestone release for an unacceptably long time. A decision was made to take Webclient off the track of depending only on milestone releases and instead depend on the "latest" Mozilla. This decision proved to have unfortunate consequences. Frequent behavior changes would break Webclient, forcing the Webclient team to engage in software sleuthing to discover the nature of the change and to make allowances for it in the Webclient code.
This problem can be solved by using version control software that supports the concept of "integration workspaces". Webclient could depend on a Mozilla-Webclient integration workspace, that would be synchronized to each milestone release. The integration workspace would be immune from normal Mozilla development changes, but it is possible to accept certain specific changes that are needed. For example, the changes that fix the "bin directory" bug. When the milestone release containing the desired bug fix does come out, the integration workspace would be synchronized with the milestone release.
Unfortunately, none of the popular freely available source code control systems support the concept of integration workspaces. However, it is possible to get the same end result by simply having another Mozilla tree, and designating it as an integration workspace. This possibility is currently being investigated.
A more general problem than the "bin directory" bug is the lack of features inherent in an iteratively evolving system. For example, there are things in the Webclient API that are not implemented in any current browser. This means that Webclient must follow the iterative development pattern of any evolving software on which it depends.
There hasn't been much formal process in the Mozilla development effort, but Webclient has used four process-like tools in its development: requirements specification, requirements analysis, formal document review, and document change control. The first two processes are intended to be done in an iterative fashion, independently. That is, the requirements specification document may go through several iterations independent of the requirements analysis document, and vice versa. The latter two processes are applied to a document for each iteration.
The first step in the requirements specification process was to produce a template document which would be filled in during the course of the specification task. This template underwent its own iterative development cycle and informal document review by peers and the Mozilla community, via Mozilla newsgroups. The template was initially based on [2] and the finished product is available at [3].
After completing the template, the requirements specification process started in earnest, taking input from several sources: the existing prototype, Netscape Navigator 4.x, Microsoft Internet Explorer 5.0, and the author's experience base. The author did a "feature traversal" of Netscape and IE to gather requirements for the specification. The spec was written from the perspective of an ideal web browser API. No consideration was given to the feasibility of the features mentioned in the spec, that is left for requirements analysis. Once the first draft was complete, several key customers were personally contacted and asked to review the specification. A request for review was also sent out to the relevant newsgroups and mailing lists. After integrating feedback from all who would give it, the spec underwent a formal document review process among Sun employees, after which point it was placed under change control. The final requirements specification document can be found in [4].
The change control process requires the creation of a "Change Control Board", or CCB. This is a group of people who hold a stake in the software and/or would be impacted by changes to the specification. The CCB should meet to discuss proposed changes to the document, similar to the process employed by the IETF, W3C, and many other standards bodies. However, the CCB process used for Webclient is lightweight, and much less formal.
The requirements analysis process takes the requirements specification document and, for each target browser (Mozilla, IE, Hot Java, etc.), determines how much of the spec can be built using that browser. This process has only been carried out for Mozilla, but carrying it out for other browsers is straightforward. The analysis document was created as a sort of questionnaire, broken down into sections corresponding to the sections of the requirements spec. The analysis work for each section was assigned to volunteers, some of whom were not Sun employees. The volunteers had to answer the following questions in each section:
As each section was completed, it was integrated back into the analysis document until the entire requirements spec had been analyzed. The feasibility scale ratings and estimated implementation time can be used to guide the scheduling of the implementation work. The final result of the analysis process is available in [5].
The author believes that the above processes (document review, requirements specification, requirements analysis, and change control) are well suited to web facilitated open-source software development. Web based tools that automate these processes would be very valuable to future open source projects.
The Webclient API as listed in the requirements specification provides interfaces for accessing the following browser functionality: accessing bookmarks, find in page, w3c DOM access, copy selection to clipboard, view source, save current page, history access and manipulation, navigation, cache access and manipulation, preferences access, and printing. These APIs provide enough depth of control to meet most accessibility guidelines. The complete Webclient API is too long to include here, but it can be found in [4].

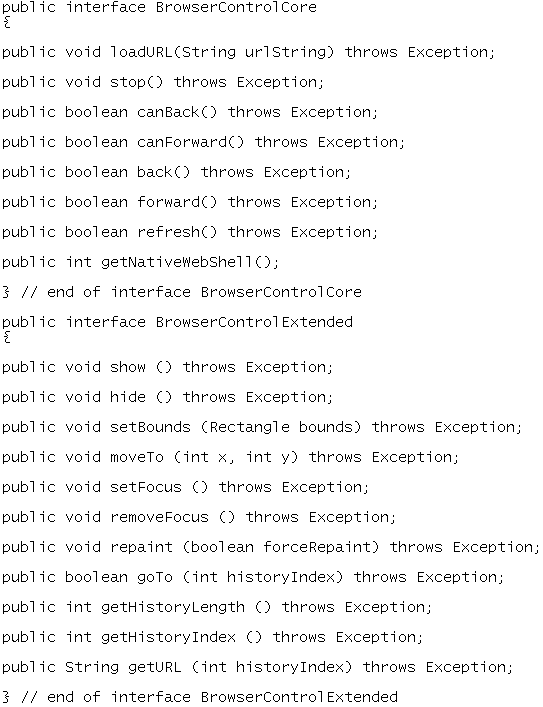

The current prototype implementation does not conform to the spec and provides a greatly reduced subset of its functionality. The methods available in the current Webclient implementation are listed below.

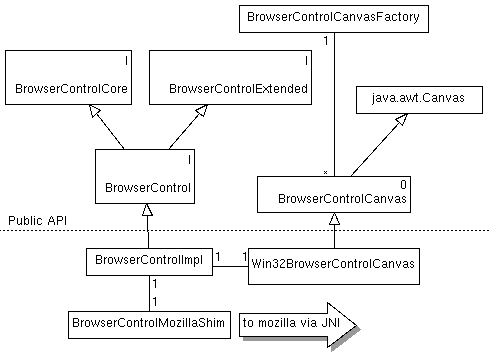

As mentioned in the Introduction, the Webclient API is designed to be backed by an existing, possibly native code browser. In order to provide this functionality, obviously an abstraction layer is required. The abstraction is provided by a "Shim" class [6], specific to the underlying browser. The shim class hides all the browser specific implementation details from the higher level Webclient classes. The relationships between the Webclient classes and interfaces can be seen in the following UML diagram.
There is not much code in Webclient, and most of it can be found in the shim class. For mozilla, the complexity of the shim class lies in passing events between Mozilla and Java. This is accomplished by means of a message queue thread, whose sole purpose is to process and dispatch events. Aside from events, the only thing the shim does is initialize the mozilla component system, and create the underlying nsIWebShell instances as necessary. The Microsoft WebBrowser control has similar methods to nsIWebShell and the shim class for IE should be similar to the one for Mozilla.
Webclient must confront the same thorny issues that any other cross-platform native code project must confront. Where possible, Webclient relies on Netscape's abstraction layers [7]. However, there have been some situations where this was not possible. In these cases, a simple #ifdef solution was employed, to conditionally compile code depending on the current platform.
The current Webclient prototype illustrates that it is possible and useful to provide a generic API on top of an underlying web browser. This approach provides flexibility, scalability, and increased performance for the end user's browsing experience. Because Webclient is based in Java, the work of embedding browsing behavior into an application is much simpler for the end user than in native environments.
Part of the impetus for submitting this paper to the World Wide Web Conference is to put the following question before the WWW development community: Would it be useful to have an official standardized web browser API? This API may do for web browsing what the DOM API has done for document access. The API in the Webclient requirements specification [4] could serve as a starting point for this standard.
Malini Minasandram, George Drapeau, and John Pampuch gave the Webclient team the freedom to work on the project outside the scope of the immediate needs of the group. The author would like to thank Kirk Baker and Ian Wilkinson for their initial work and continued support, Frank Mitchell for his ideas and critique, all the members of the Webclient team, the Mozilla organization, and the management of America Online for continuing to support Mozilla.
Webclient was born of an open source (MPL [8]) project, the Mozilla web browser, and continues to be developed as such. In a simple definition, an open source software project has at least the following attributes:
A more rigorous definition of open source software can be found in [9]. The Mozilla web browser project was started by Netscape in late March of 1998, in an attempt to leverage the power of open source as seen in the development of the Linux operating system [10]. Netscape hopes to use the output of the Mozilla web browser project as the heart of its Communicator 5.0 product. One of the many side effects of the open source nature of the Mozilla project was that for the first time, there was a possibility for cross platform applications to embed world class browsing behavior without having to provide that behavior from scratch. The embedding of Mozilla into a larger application was taken into the charter of the Mozilla project and there are several projects underway now that aim to leverage Mozilla in this way.
While the success of the open source strategy for Mozilla is debatable (most of the engineers working on Mozilla are employed by Netscape for the sole purpose of working on Mozilla), there have been important contributions by the general software development community. One of these was the RaptorCanvas project, started by Kirk Baker and Ian Wilkinson in April of 1999. RaptorCanvas intended to embed the Mozilla WebShell interface into Java. Sun Microsystems took an interest in Kirk and Ian's work in July of 1999 (after the Sun/AOL/Netscape deal [11]). The project was renamed Webclient, and hosted the project at mozilla.org, along side the code for the Mozilla web browser. Sun expanded Webclient's charter to be more general than wrapping only Mozilla: making plans for wrapping the WebBrowser ActiveX control from Microsoft, and the Hot Java Browser Bean from Sun. However, Mozilla would be the first and most important target browser to wrap. The first prototype implementation of Webclient was checked in to mozilla.org in early August 1999.
[1] E.J. Burns, Java API for WebShell, at mozilla.org http://www.mozilla.org/projects/blackwood/webclient/index.html#Overview.
[2] R. Pressman, Software Engineering, A Practitioner's Approach, 3rd. Ed., McGraw-Hill, New York, NY 1992
[3] L. Martin, Requirements Specification Guide, at mozilla.org http://www.mozilla.org/projects/blackwood/templates/requirements-spec-guide.html.
[4] E. Burns, A. Sunhachawee, L. Garin, F. Mitchell, A. Tripp, I. Khavkine, Webclient Requirements Specification, at mozilla.org http://www.mozilla.org/projects/blackwood/webclient/RequirementsSpec.html.
[5] E. Burns, A. Sunhachawee, F. Mitchell, K. Baker, J. Visvanathan, Webclient Requirements Analysis, at mozilla.org http://www.mozilla.org/projects/blackwood/webclient/RequirementsAnalysis.html.
[6] Merriam Webster Co. shim, noun: a thin often tapered piece of material (as wood, metal, or stone) used to fill in space between things (as for support, leveling, or adjustment of fit), WWWebster Dictionary http://www.m-w.com/netdict.htm.
[7] M. Cusumano, D. Yoffie, What Netscape Learned from Cross-Platform Software, Comm. ACM 42(10): 72-78, October 1999.
[8] Mozilla Public License, at mozilla.org http://www.mozilla.org/MPL/MPL-1.1.html.
[9] B. Perens, The Open Source Definition, at opensource.org http://www.opensource.org/osd.html.
[10] Netscape Press Release, at netscape.com http://www.netscape.com/newsref/pr/newsrelease558.html.
[11] America Online to Acquire Netscape..., AOL Press Release, at aol.com http://media.web.aol.com/media/press.cfm.
Edward J. Burns is the technical lead of the webclient team at Sun Microsystems. He has a long history of participating in WWW conferences, starting with WWW2 in Chicago while a student programmer at NCSA. He coined the term "webcast" at the WWW3 conference in Darmstadt, using his experimental software to multicast webpages to conference attendees over the MBONE. He received a B.S. in Computer Science from the University of Illinois at Urbana-Champaign in 1995. Home Page: http://purl.oclc.org/NET/edburns/
